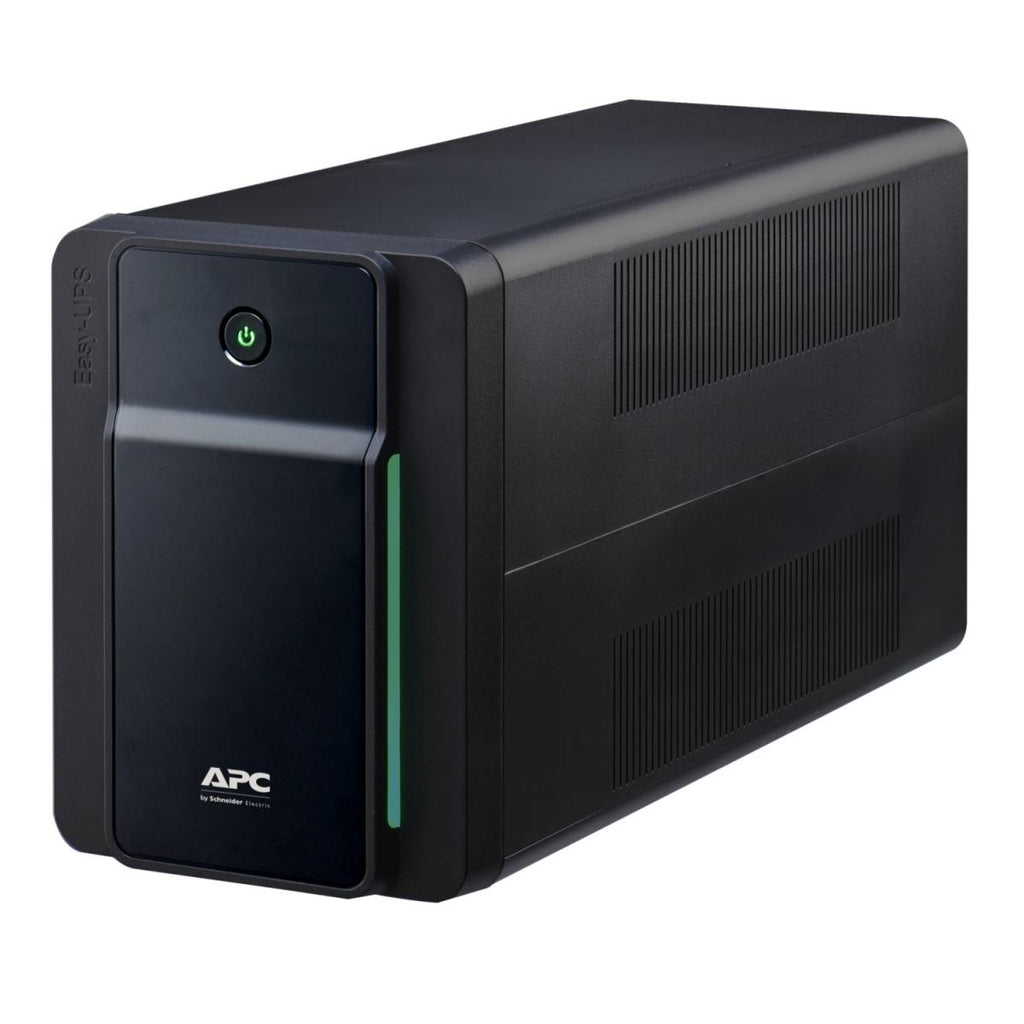

The APC Easy UPS BVX 1200VA is a dependable uninterruptible power supply designed to protect your critical equipment from power disturbances. Featuring Automatic Voltage Regulation (AVR), this line-interactive UPS delivers clean, stable power to connected devices while providing battery backup during outages. With 1200VA/650W capacity, universal socket compatibility, and up to 120 minutes of runtime, the BVX series ensures your computers, networking equipment, and electronics stay protected and operational.
Key Features:
-
1200VA / 650W Power Capacity: Sufficient power to protect desktop computers, workstations, networking equipment, and other critical electronics.
-
Automatic Voltage Regulation (AVR): Corrects voltage fluctuations without switching to battery, extending battery life and providing cleaner power to connected equipment.
-
Line Interactive UPS: Provides superior power protection with faster response to power anomalies compared to standby UPS systems.
-
Universal Socket Compatibility: 4 universal outlets plus 1 IEC 60320 C13 outlet accommodate various plug types and equipment.
-
Extended Runtime: Up to 120 minutes maximum runtime ensures your equipment stays powered during extended outages.
-
Fast Transfer Time: 6ms typical (10ms maximum) transfer time ensures seamless switchover to battery power without interrupting connected devices.
-
Lead-Acid Battery: Reliable 12V, 9.0Ah battery with 2-3 year lifespan provides dependable backup power.
-
8-Hour Recharge Time: Battery fully recharges in 8 hours after discharge.
-
Wide Input Voltage Range: Accepts input voltage from 140V to 300V, providing protection against brownouts and overvoltage conditions.
-
50/60 Hz Auto-Sensing: Automatically adapts to local power frequency for global compatibility.
-
Stepped Approximation Sine Wave: Output waveform suitable for most electronic equipment and computers.
-
1.2m Power Cable Included: Ready to use out of the box with included IEC 60320 C14 input cable.
-
Compact Tower Design: Space-efficient design (390mm x 140mm x 190mm) suitable for floor mounting next to your desk or equipment rack.
-
CE and CB Certified: Meets international safety and quality standards.
-
Replaceable Battery: User-replaceable battery (APCRBC175) extends UPS lifespan and reduces total cost of ownership.
Runtime Performance:
- Full Load (650W): 1 minute
- Half Load (300W): 5 minutes
- Maximum Runtime: 120 minutes (light loads)
Technical Specifications:
- Model: BVX 1200VA
- Product Type: Uninterruptible Power Supply (UPS)
- UPS Type: Line Interactive
- Rated Power: 1200VA / 650W
- Input Voltage: 230V AC 1 phase
- Output Voltage: 230V AC 1 phase
- Input Voltage Range: 140-300V
- Network Frequency: 50/60 Hz ±5 Hz auto-sensing
- Output Frequency: 50/60 Hz ±1 Hz sync to mains
- Transfer Time: 6ms typical, 10ms maximum
- Wave Type: Stepped approximation to sine wave
- Power Factor (Cos φ): 0.51
- Input Connection: IEC 60320 C14
- Output Connections: 4 universal sockets + 1 IEC 60320 C13
- Cable Length: 1.2m
- Battery Type: Lead-acid
- Battery Voltage: 12V
- Battery Capacity: 9.0Ah
- Battery Life: 2-3 years
- Battery Recharge Time: 8 hours
- Replacement Battery: APCRBC175
- Dimensions (H x W x D): 190mm x 140mm x 390mm
- Net Weight: 7.5kg
- Mounting: Floor standing, not rack-mountable
- Color: Black
- Certifications: CE, CB
- USB Compatible: No
What's Included:
- APC Easy UPS BVX 1200VA unit
- 1.2m power cable
- User manual

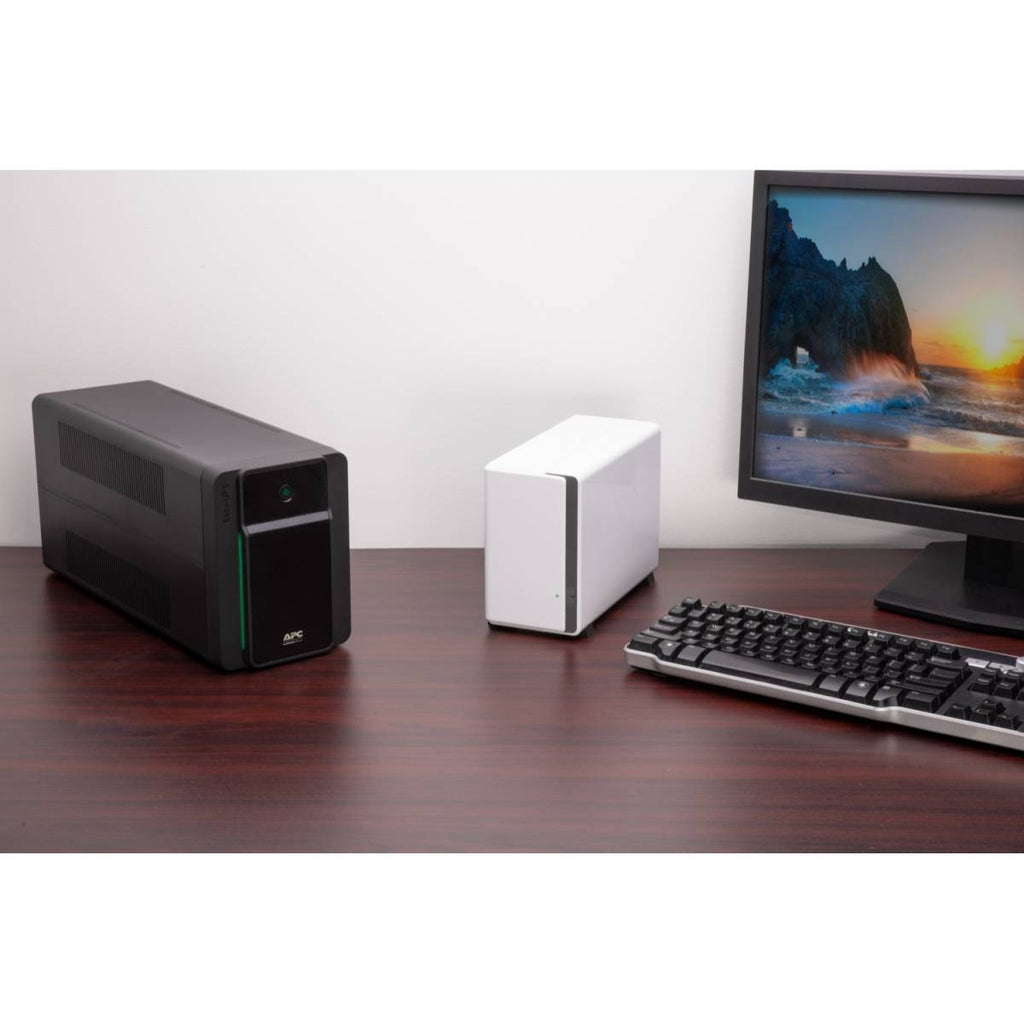

Perfect For:
- Desktop computers and workstations
- Networking equipment (routers, switches, modems)
- Home office setups
- Small business servers
- Point-of-sale systems
- Security systems
- Any equipment requiring clean, uninterrupted power
Protect your valuable equipment and data with the APC Easy UPS BVX 1200VA—reliable power protection from the world's leading UPS manufacturer.
