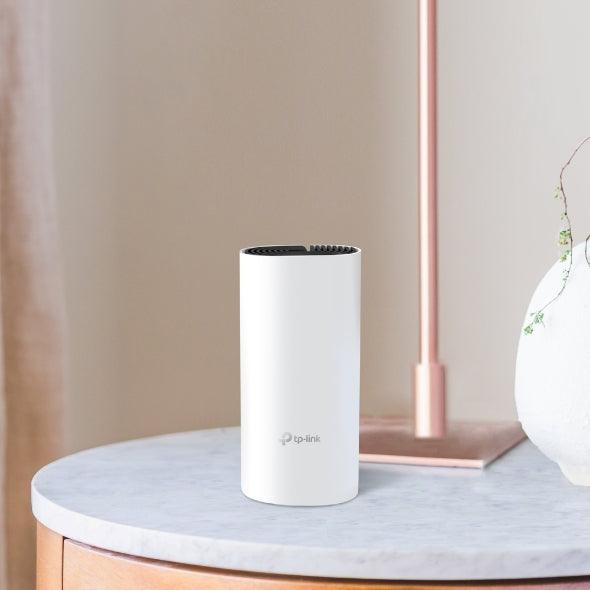

Upgrade your home Wi-Fi with the TP-Link AC1200 Whole Home Mesh Wi-Fi Unit. With its advanced mesh technology, experience seamless connectivity throughout your house. Enjoy high-speed internet with its AC1200 dual-band Wi-Fi, providing up to 1200Mbps speeds. Say goodbye to dead zones and buffering, and hello to a reliable and efficient network.
| WIRELESS |
| Standards |
Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds |
AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range |
3-5 Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
2× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity |
Medium
Dual-Band
Distribute devices to different bands for optimal performance
MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients |
| Working Modes |
Router Mode
Access Point Mode |
| HARDWARE |
| Ethernet Ports |
2× Gigabit Ports
*Per Deco Unit
Supports WAN/LAN auto-sensing |
| Buttons |
Reset Button |
| SECURITY |
| WiFi Encryption |
WPA-Personal
WPA2-Personal |
| Network Security |
SPI Firewall
Access Control |
| Guest Network |
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| SOFTWARE |
| Protocols |
IPv4
IPv6 |
| Parental Controls |
URL Filtering
Time Controls |
| WAN Types |
Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
| Quality of Service |
QoS by Device |
| Cloud Service |
OTA Firmware Upgrade
TP-Link ID
DDNS |
| NAT Forwarding |
Port Forwarding
UPnP |
| IPTV |
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
| DHCP |
Address Reservation
DHCP Client List
Server |
| DDNS |
TP-Link |
| Management |
Deco App |
| TEST DATA |
| WiFi Transmission Power |
CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm |
| PHYSICAL |
| Dimensions (W×D×H) |
3.6 × 3.6 × 7.5 in
(90.7 × 90.7 × 190 mm) |
| Package Contents |
Deco M4 (3-pack)
3 Deco M4R Units
1 RJ45 Ethernet Cable
3 Power Adapters
1 Quick Installation Guide
Deco M4 (2-pack)
2 Deco M4R Units
1 RJ45 Ethernet Cable
2 Power Adapters
1 Quick Installation Guide
Deco M4 (1-pack)
1 Deco M4R Unit
1 RJ45 Ethernet Cable
1 Power Adapter
1 Quick Installation Guide |
| OTHERS |
| System Requirements |
Android 5.0 or later
iOS 9.0 or later
*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. |
| Certifications |
CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
- A Deco M4 one-pack delivers Wi-Fi to an area of up to 2,000 square feet (EU version)†. And if that’s not enough, simply add more Decos to the network anytime to increase coverage.
- Deco M4 provides fast and stable connections with speeds of up to 1167 Mbps† and works with major internet service provider (ISP) and modem.
- Deco can handle traffic from even the busiest of networks, providing lag-free connections for up to 100 devices
- Parental Controls limits online time and block inappropriate websites according to unique profiles created for each family member.
- Setup is easier than ever with the Deco app there to walk you through every step.
- Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage — eliminate weak signal areas once and for all!
- With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds
