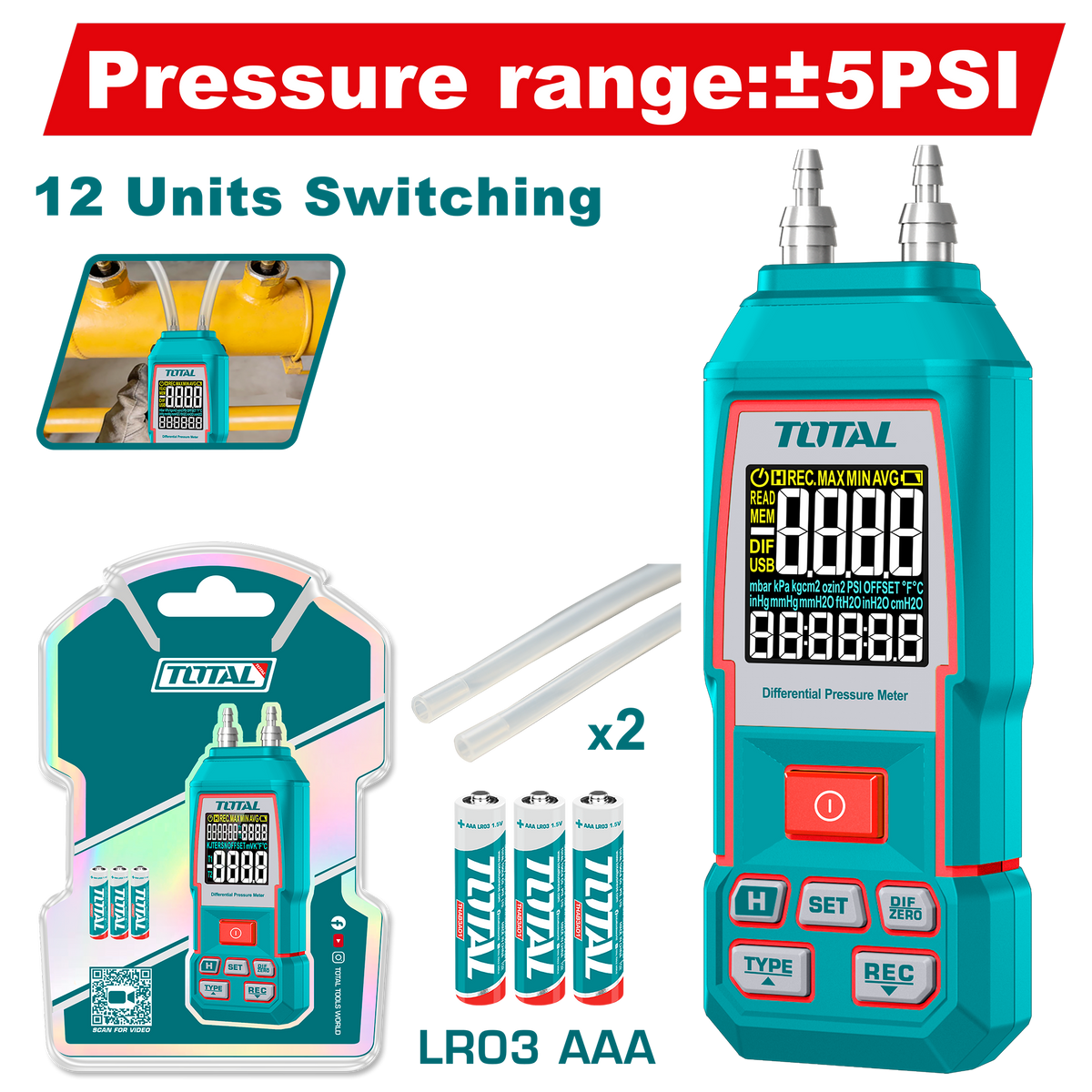

TOTAL Digital Differential Manometer ±5 PSI – Air Pressure Gauge with Backlit Display & 11 Measurement Units (TETGA032)

TOTAL Digital Differential Manometer ±5 PSI – Air Pressure Gauge with Backlit Display & 11 Measurement Units (TETGA032)

Key Features & Specifications

• The Digital Differential Manometer is a precision measuring instrument designed to measure air pressure differences in ventilation systems, HVAC equipment, and other air pressure testing applications.
• With a measurement range of ±5 PSI and an accuracy of ±0.3% FS, it provides reliable pressure readings across 11 different measurement units.
• The device features a backlit digital display for easy reading, along with minimum, maximum, and average value calculations. Additional functions include data hold, low battery indication, and automatic shutdown for convenient operation.
• Specifications & Features
• Type: Digital differential manometer
• Pressure measurement range: ±5 PSI
• Air pressure measurement accuracy: ±0.3% FS (full scale)
• Measurement units (11):
• inH2O (inches of water)
• bar
• oz/in²
• PSI
• mbar
• kPa
• inHg (inches of mercury)
• mmHg (millimeters of mercury)
• kg/cm²
• ftH2O (feet of water)
• cmH2O (centimeters of water)
• Calculates minimum, maximum, and average readings
• Backlit digital display
• Data hold function
• Low battery indicator
• Automatic shutdown
• Power supply: 3 × 1.5V AAA batteries
