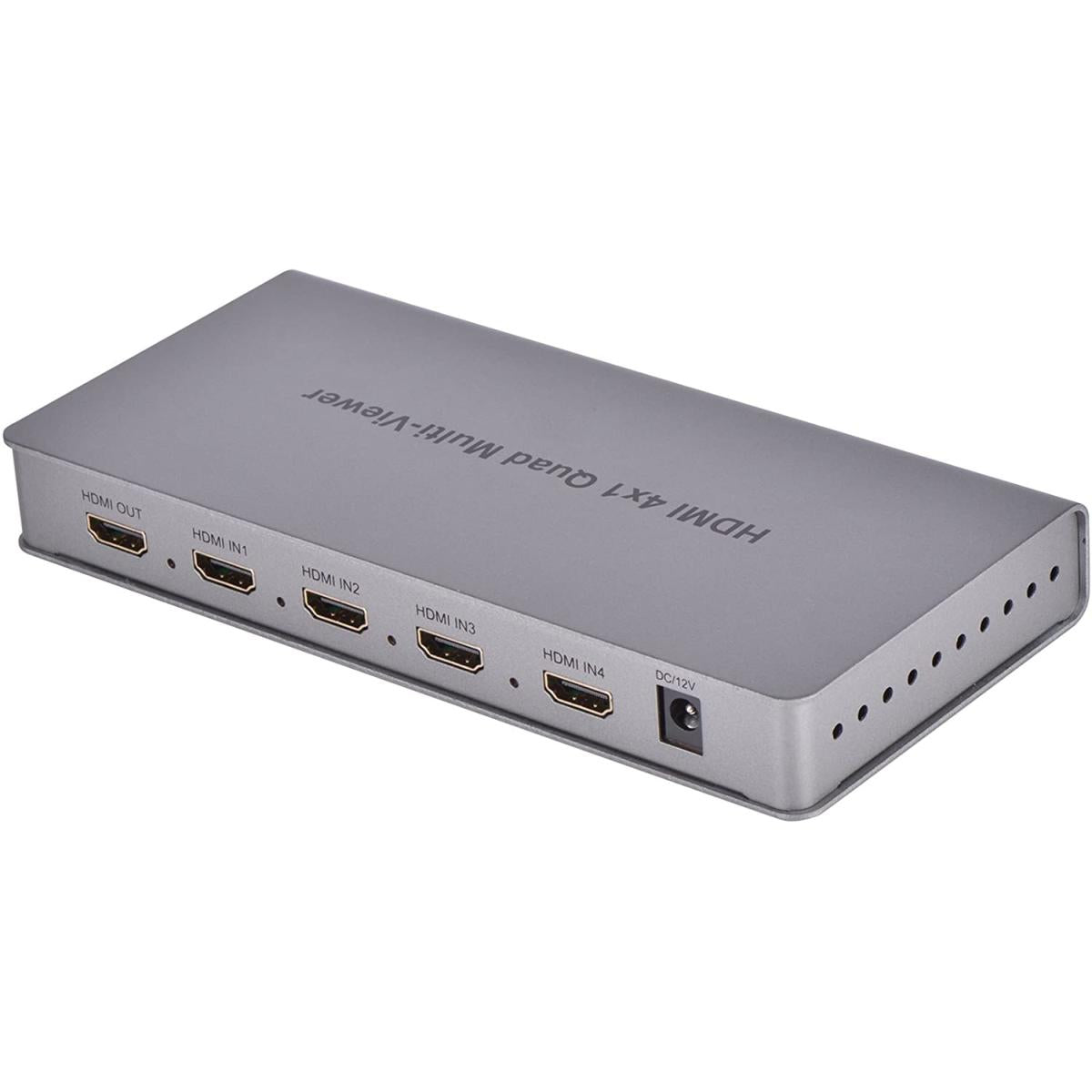

HDMI 4x1 Quad Multi-Viewer — 1080P, Seamless Switching, IR Control

Manage four HDMI sources on a single display with the HDMI 4x1 Quad Multi-Viewer. Whether you’re monitoring multiple cameras, running a multi-source presentation, or managing a control room setup, this device lets you view all 4 inputs simultaneously — or switch between them seamlessly with a single click or IR remote.

Key Features

• 📺 4 HDMI Inputs, 1 HDMI Output — display all 4 sources at once in quad-split view
• ⚡ Seamless Switching — instantly switch between any of the 4 channels without signal interruption
• 📹 Up to 1080P/60Hz — full HD resolution for crisp, clear output
• 📶 IR Remote Control — convenient wireless switching from a distance
• 🔌 HDMI 1.3a & HDCP 1.2 Compatible — broad device compatibility including DVI 1.0
• 🔊 PCM2 Audio Output — clean stereo audio passthrough
• 📶 Up to 15m Cable Support — AWG26 standard cable, both input and output

Supported Resolutions

1080P, 720P, 1080i, 1024×768, 1360×768

Specifications

• Inputs: 4 × HDMI
• Output: 1 × HDMI
• Max Resolution: 1080P/60Hz
• Audio: PCM2
• Cable Support: AWG26, up to 15m (input & output)
• Power: DC 12V/2A adapter
• Net Weight: 350g
• Dimensions: 190 × 90 × 23 mm
• Control: IR Remote
• Compatibility: HDMI 1.3a, HDCP 1.2, DVI 1.0
