Wi-Fi (2.4 GHz) < 200 m ZigBee 3.0 < 200 m (Tested in open environment)
Antenna
Built-in
PIR SENSOR
Model
CS-T1C-A0-BG
General
Operation Conditions
-10 °C to 55 °C (14 °F to 131 °F), humidity 95% or less (non-condensing)
Dimensions
Main body: Φ 43.5 × 32.0 mm (1.7 × 1.3 inch) Base: Φ 29.0 × 9.5 mm (1.1 × 0.4 inch)
Package Size
92 × 52 × 93 mm (3.6 × 2.0 × 3.7 inch)
Weight
92 g (3.2 oz) with package
Detection
Detection Type
Passive infrared (PIR)
Detection Distance
Up to 7 m / 23 ft
Detection Angle
90° horizontal, 90° vertical
Recommended Installation Height
1.8 to 2.5 m for wall-mounted installation
Pet-Proof Detection
Requires using the pet shield and an installation height of 50 cm or higher above the pet
Function
Low Battery Reminder
Supports
Anti-Tamper Alarm
Supports
Installation Methods
Adhesive back with magnetic parts. Supports wall and ceiling flip-over installation
Battery
Battery Type
Cell battery CR2450
Battery Life
High-performance mode: Up to 1 year Energy-saving mode: Up to 2 years
Network
Protocol
ZigBee 3.0
Communication Distance
< 200 m (Tested in open environment)
OPEN/CLOSE SENSOR
Model
CS-T2C-A0-BG
General
Operation Conditions
-10 °C to 55 °C (14 °F to 131 °F), humidity 95% or less (non-condensing)
Dimensions
Main body: 53.5 × 22.5 × 13.5 mm (2.1 × 0.9 × 0.5 inch) Magnet: 32.0 × 10.5 × 13.5 mm (1.2 × 0.4 × 0.5 inch)
Package Size
92 × 52 × 93 mm (3.6 × 2.0 × 3.7 inch)
Weight
80 g (2.8 oz) with package
Detection
Detection Type
80 g (2.8 oz) with package
Recommended Trigger Distance
Wooden door > 25 mm Iron door > 15 mm
Function
Low Battery Reminder
Supports
Anti-Tamper Alarm
Supports
Installation Method
Adhesive back for peel-and-stick installation
Battery
Battery Type
Cell battery CR1632 × 2
Battery Life
Up to 2 years (Based on the usage of 30 detections per day)
Network
Protocol
ZigBee 3.0
Communication Distance
< 200 m (Tested in open environment)
SMART BUTTON
Model
CS-T3C-A0-BG
General
Operation Conditions
-10 °C to 55 °C ( 14 °F to 131 °F ), humidity 95% or less (non-condensing)
Dimensions
Φ 40.6 × 12.3mm (Φ 1.6 × 0.5 inch)
Package Size
92 × 52 × 93 mm (3.6 × 2.0 × 3.7 inch)
Weight
68 g (2.4 oz) with package
Control Methods
Single Click
< 2 s
Double Click
Interval time < 0.5 s
Long Press
≥ 2 s
Modes
Arm / Disarm Mode, Emergency Button Mode
Function
Low Battery Reminder
Supports
Anti-Tamper Alarm
Supports
Installation Method
Place anywhere; adhesive back for peel-and-stick installation
Battery
Battery Type
Cell battery CR2032
Battery Life
Up to 2 years (Based on the usage of 15 clicks per day)
Network
Protocol
ZigBee 3.0
Communication Distance
< 200 m (Tested in open environment)

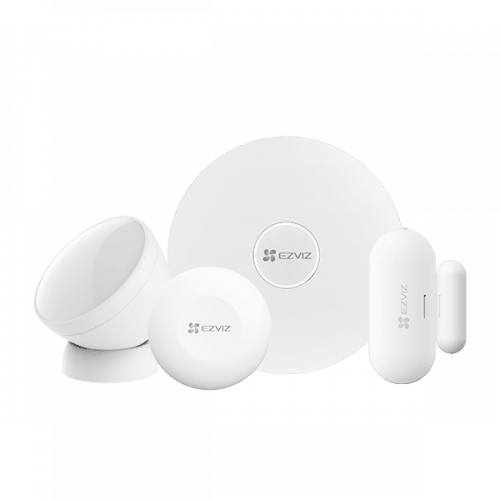

IN THE BOX
A3 Home Gateway
- Power Adapter for A3
- USB Cable for A3
- T1C PIR Sensor
- Pet Shield for T1C
- T2C Open/Close Sensor
- T3C Smart Button
- Doubled-sided Tape Strips (3)
- Regulatory Information
- Quick Start Guide
