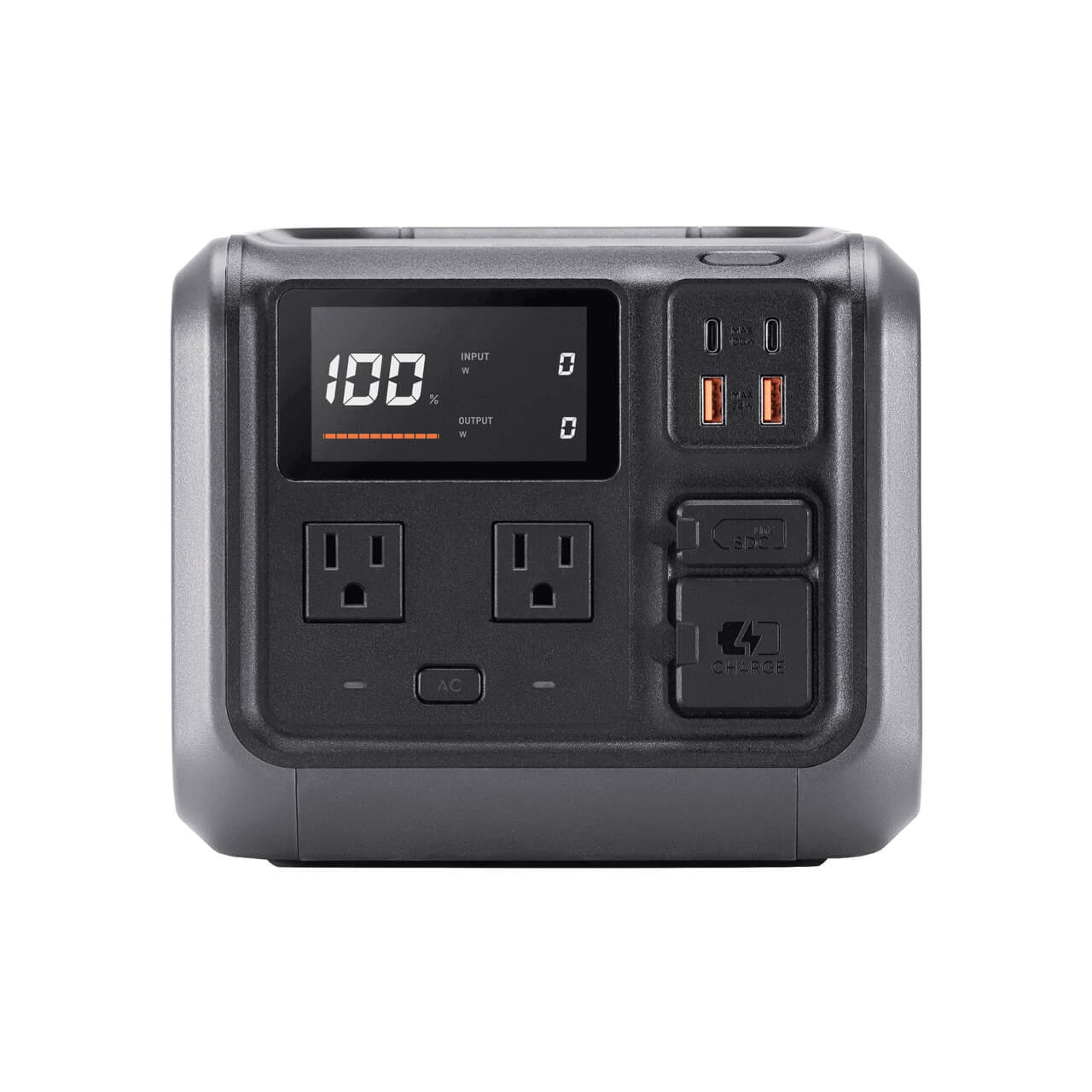

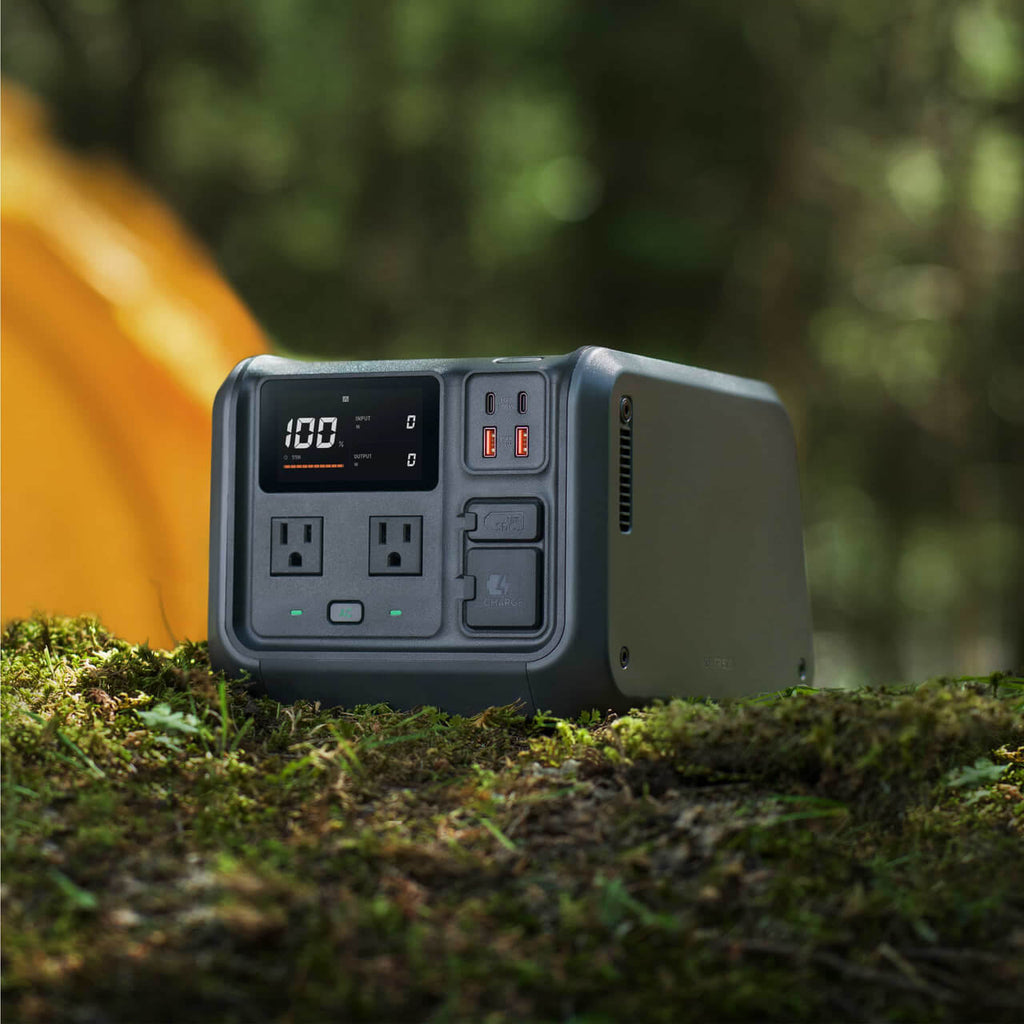

DJI Power 500 is a compact portable power station with a 512Wh LFP battery and up to 1000W continuous AC output. It powers common household appliances, charges laptops and phones, and fast-charges select DJI drone batteries. It recharges from 0 to 100% in about 70 minutes on grid power and runs as quietly as 25 dB, making it suitable for camping, field content creation, and home backup power.
Key Features
- 1000W Stable Output: 512Wh capacity with 1000W max continuous AC output, enough for appliances such as a 900W electric kettle.
- Fully Charged in 70 Minutes: 540W fast recharge and 270W standard recharge modes on grid power, reaching 80% in approx. 50 minutes.

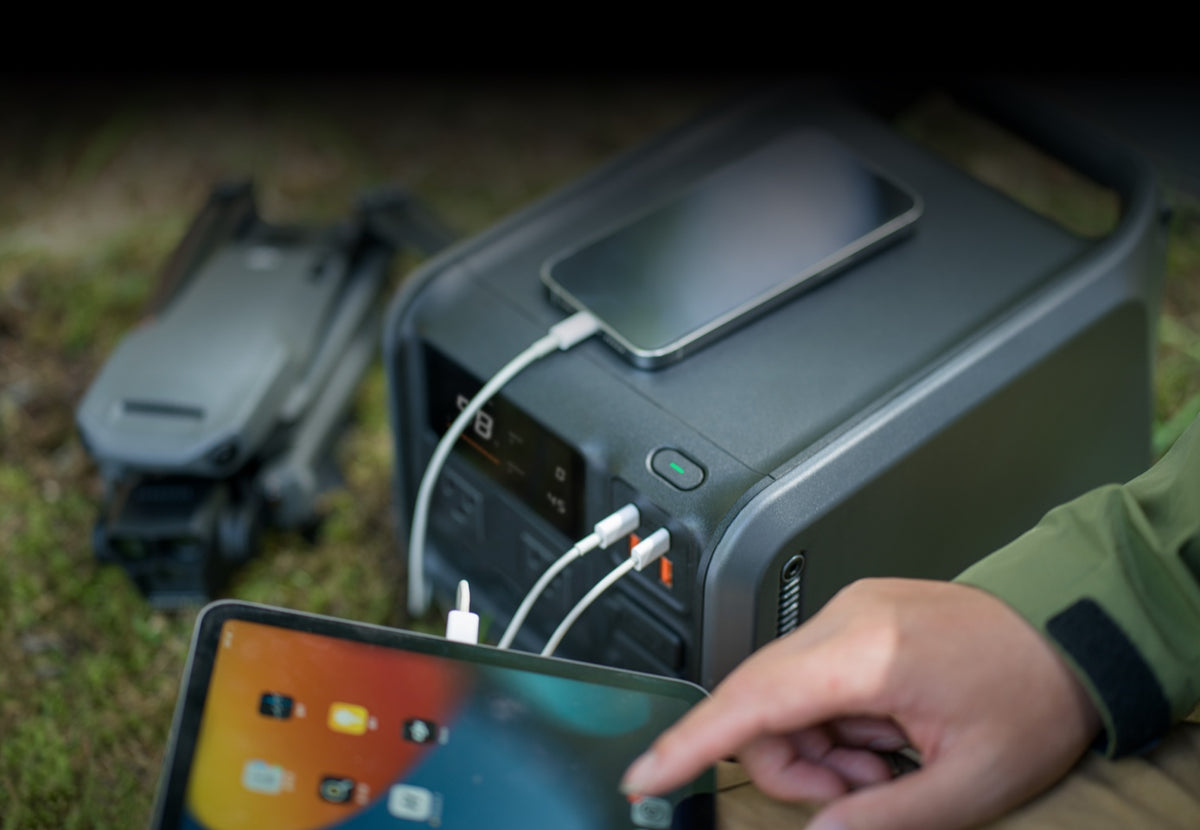

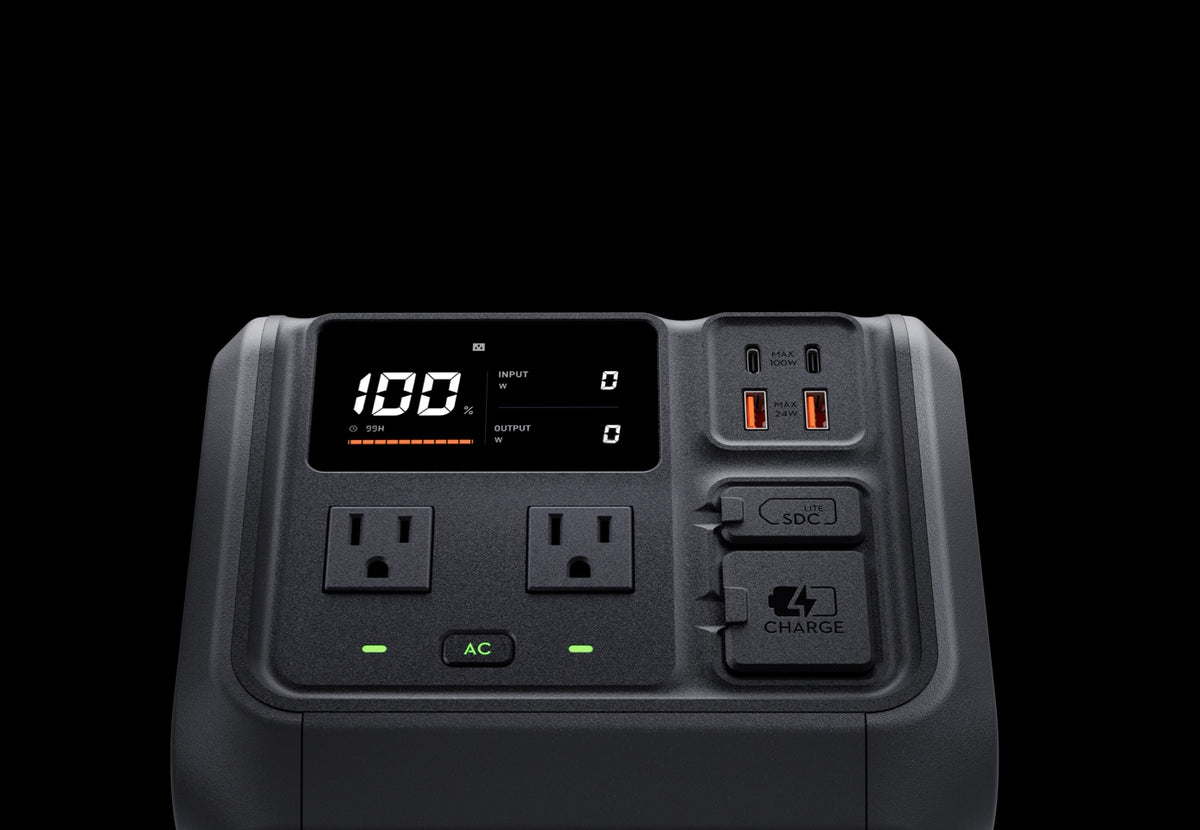

- Dual 100W USB-C Two-Way Ports: Each port delivers up to 100W output (PD 3.0), and both ports together can recharge the station at up to 200W.

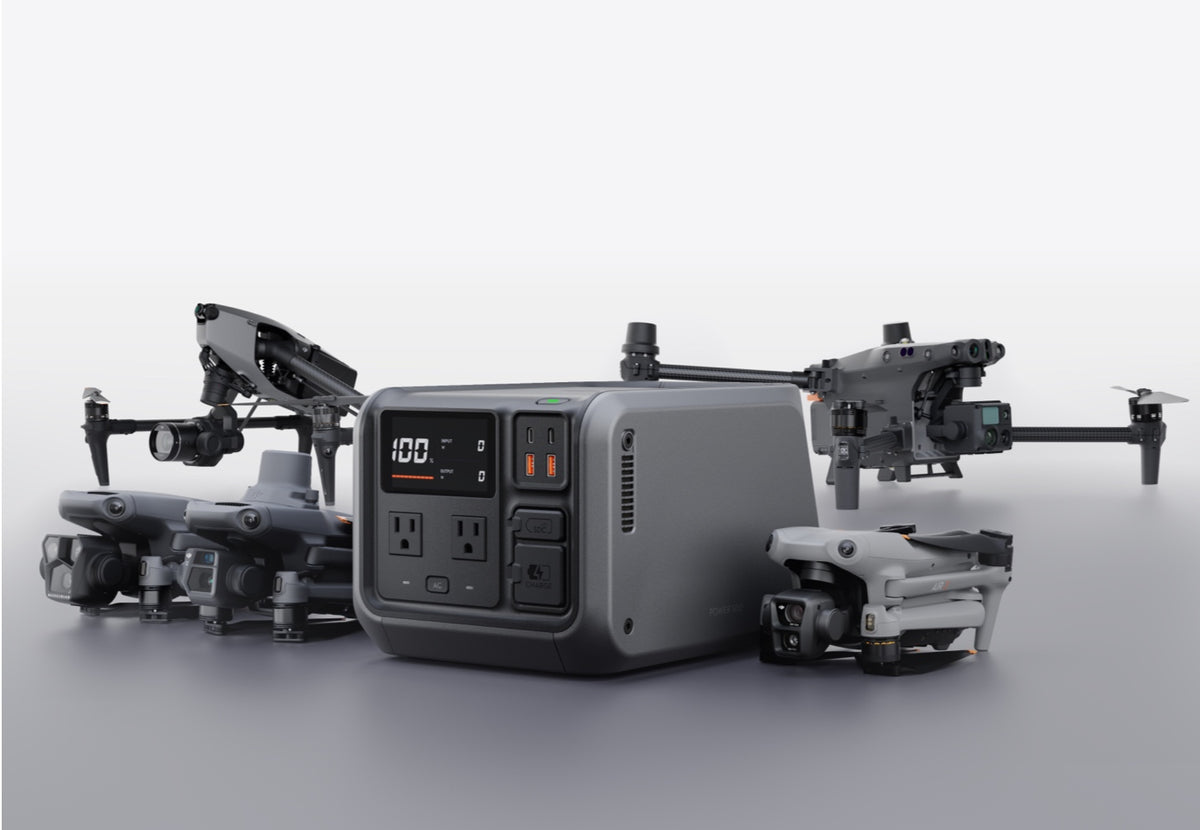

- Fast Charges DJI Drones: SDC super-fast charging for Mavic 3 series, Air 3/3S, Inspire 3 and Matrice 30 series batteries (dedicated cable sold separately).

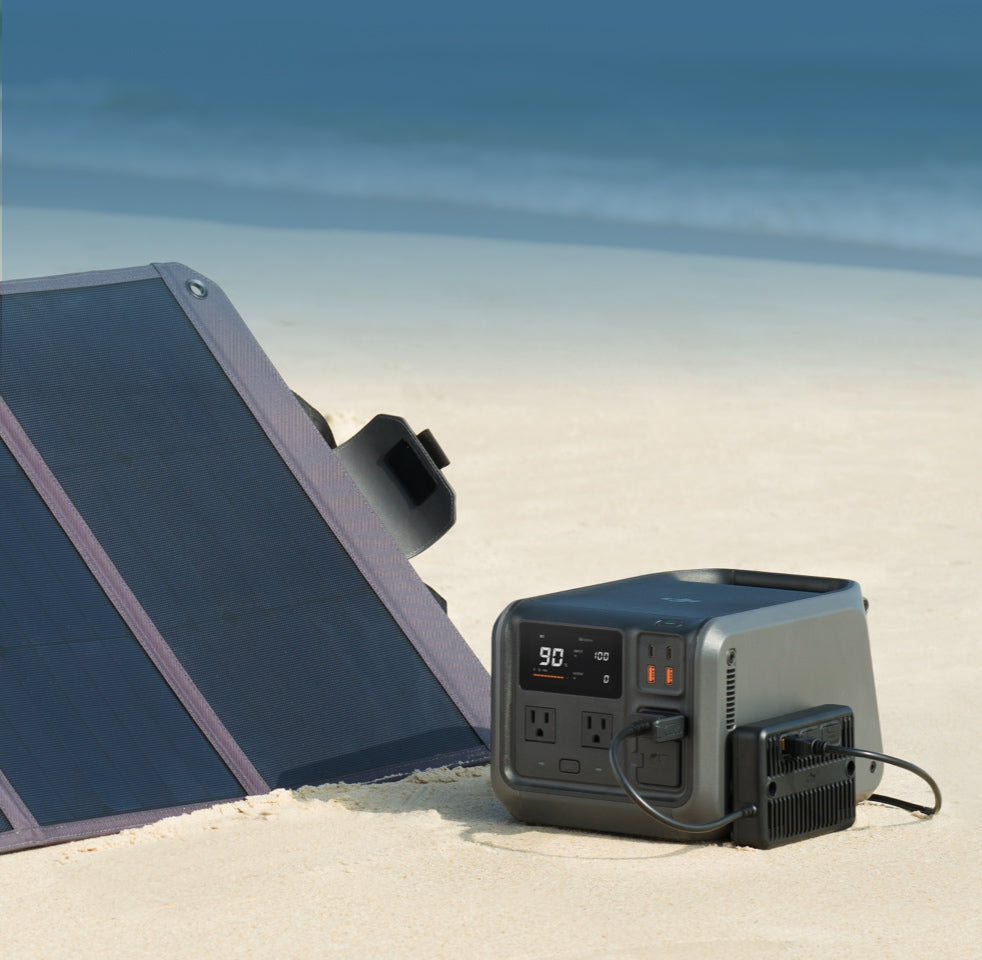

- Four Recharging Methods: Grid power, USB-C, solar via the DJI Power MPPT module (up to three panels), and car power outlet (12V/24V).

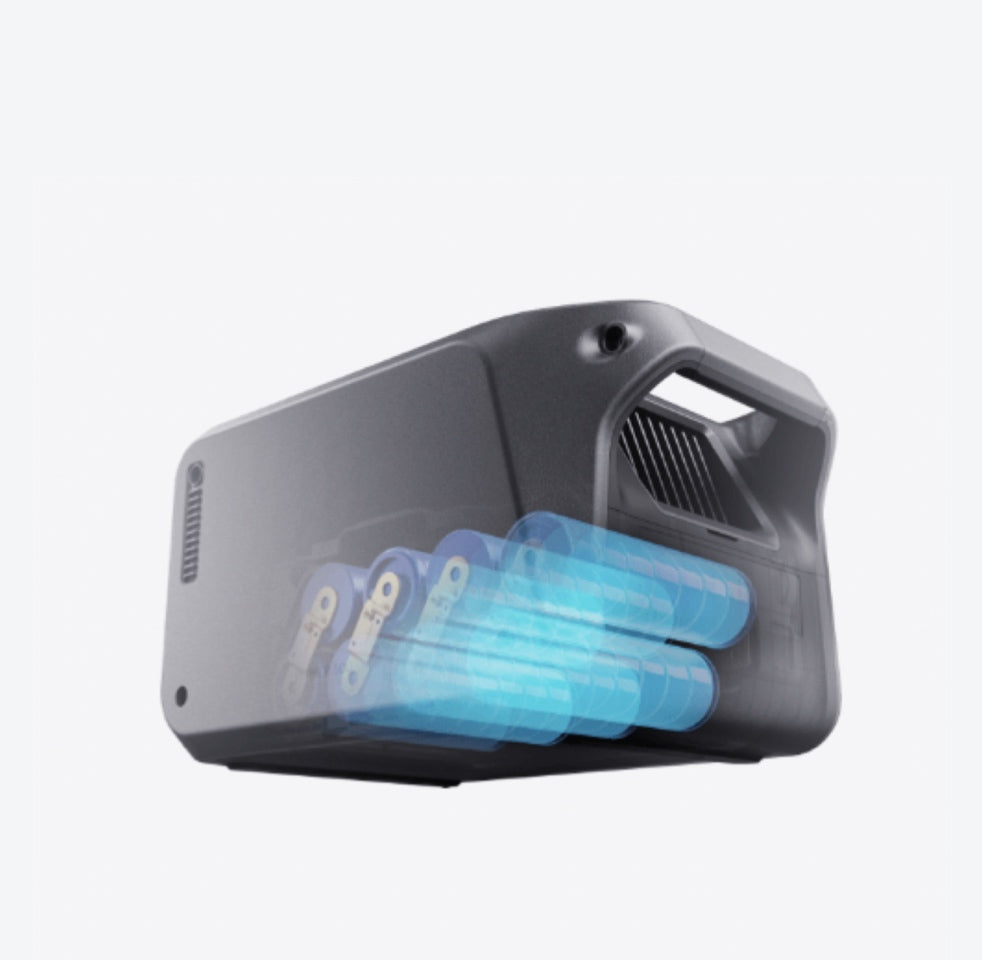

- LFP Battery with 4000 Cycles: Retains over 70% capacity after 4000 cycles, approx. 10 years of daily use.
- Comprehensive Safety: Passed 26 SGS product test certifications, intelligent BMS with over-current, over-voltage and over-discharge protection, and a flame-retardant body that supports up to 100 kg.
- Quiet Operation: Noise level as low as 25 dB.
Technical Specifications
| Model |
DYM500H |
| Capacity |
512 Wh |
| Cell Chemistry |
LFP (lithium iron phosphate) |
| Cycle Life |
Over 70% capacity after 4000 cycles |
| AC Output |
2 ports, AC 220-240 V, 50/60 Hz, 1000 W max continuous (above 20% battery) |
| USB-C Output |
2 ports, 5-20 V / 5 A, 100 W max per port (PD 3.0) |
| USB-A Output |
2 ports, 5 V 3 A / 9 V 2 A / 12 V 2 A, 24 W max per port |
| SDC Lite Output |
9-27 V, 240 W max |
| AC Input |
AC 220-240 V, 540 W recharging, 1000 W bypass mode |
| USB-C Input |
DC 5-20 V, 100 W max per port, 200 W with both ports |
| SDC Lite Input |
DC 22.4-29.2 V, 300 W max, 10 A |
| Dimensions |
305 x 207 x 177 mm (L x W x H) |
| Net Weight |
Approx. 7.3 kg |
| Max Operating Altitude |
3000 m |
| Discharging Temperature |
-10 to 45 °C |
| Charging Temperature |
0 to 45 °C |

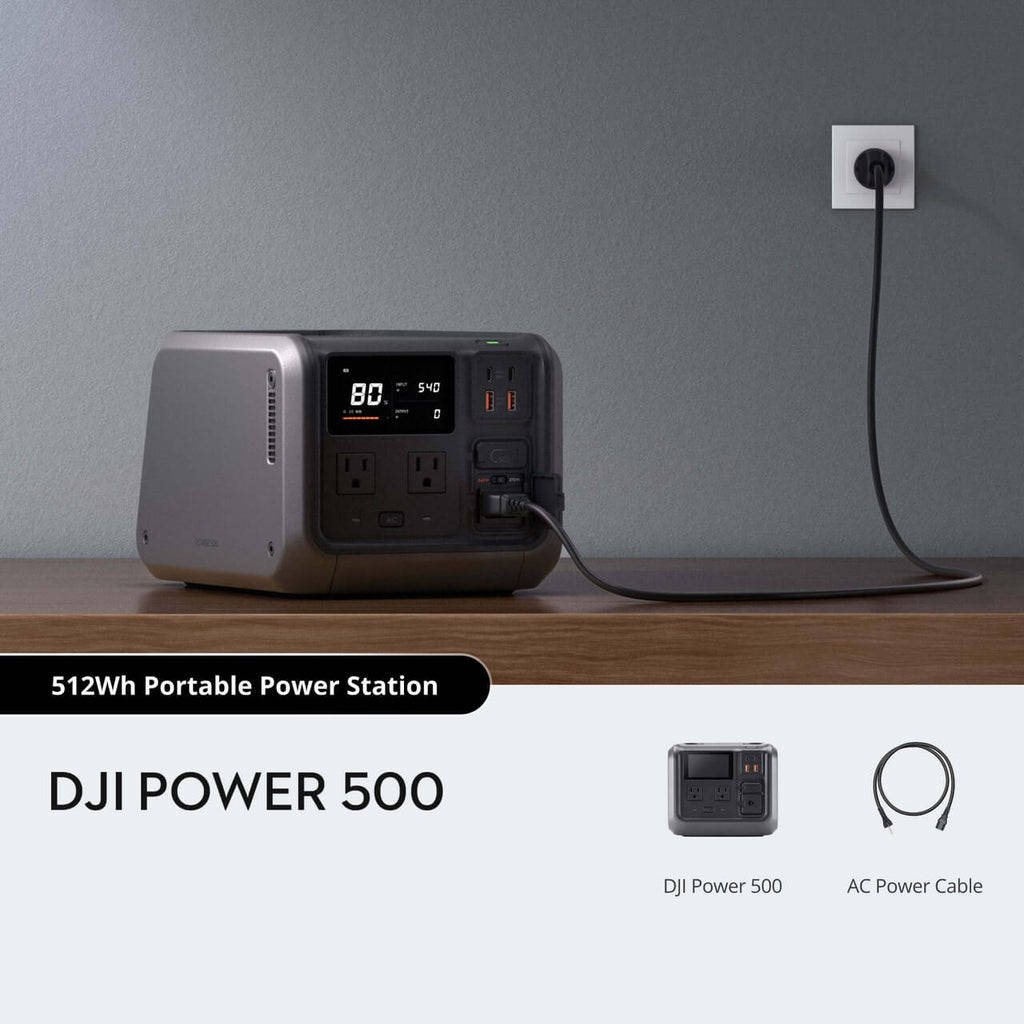

In the Box

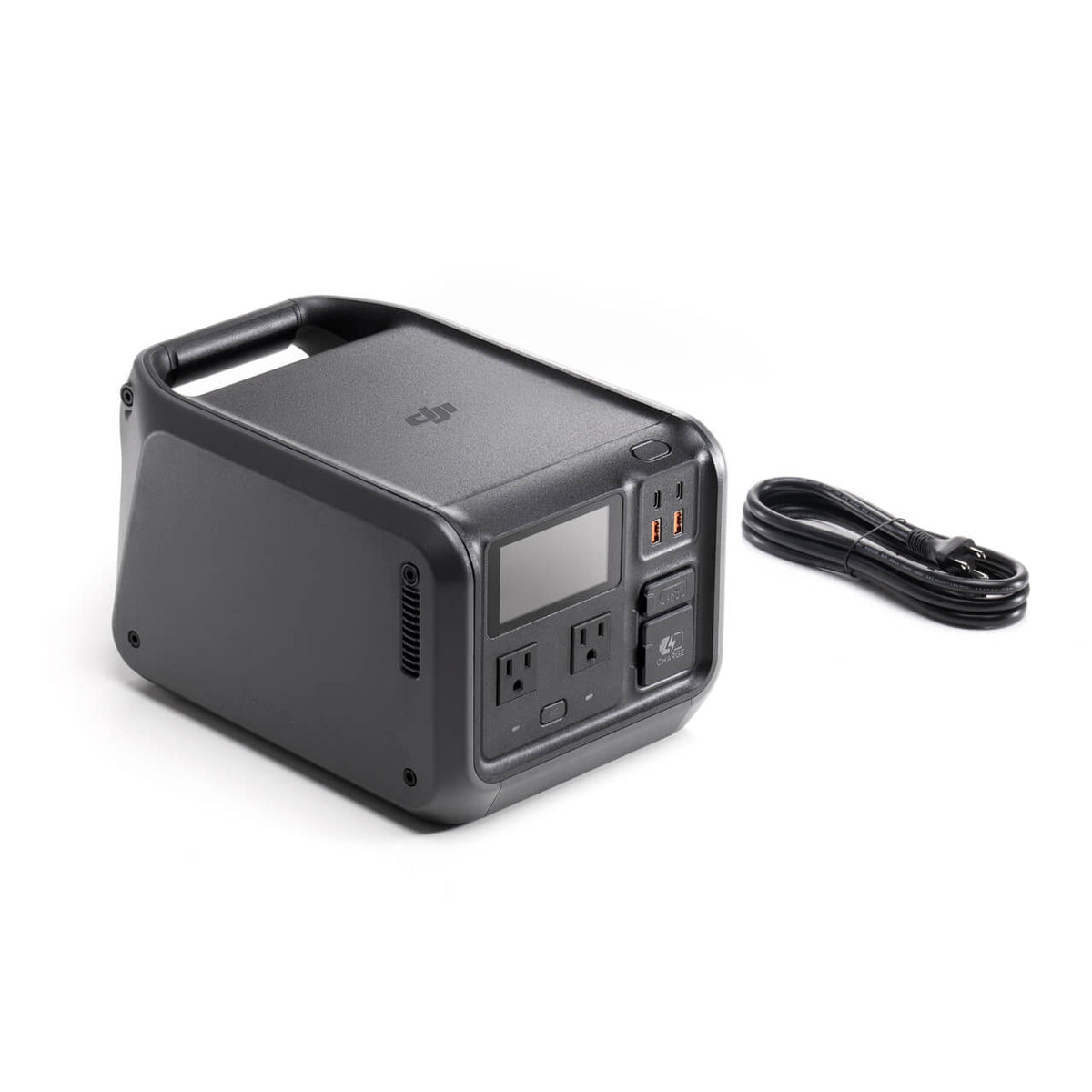

- DJI Power 500 x 1
- DJI Power AC Power Cable x 1
