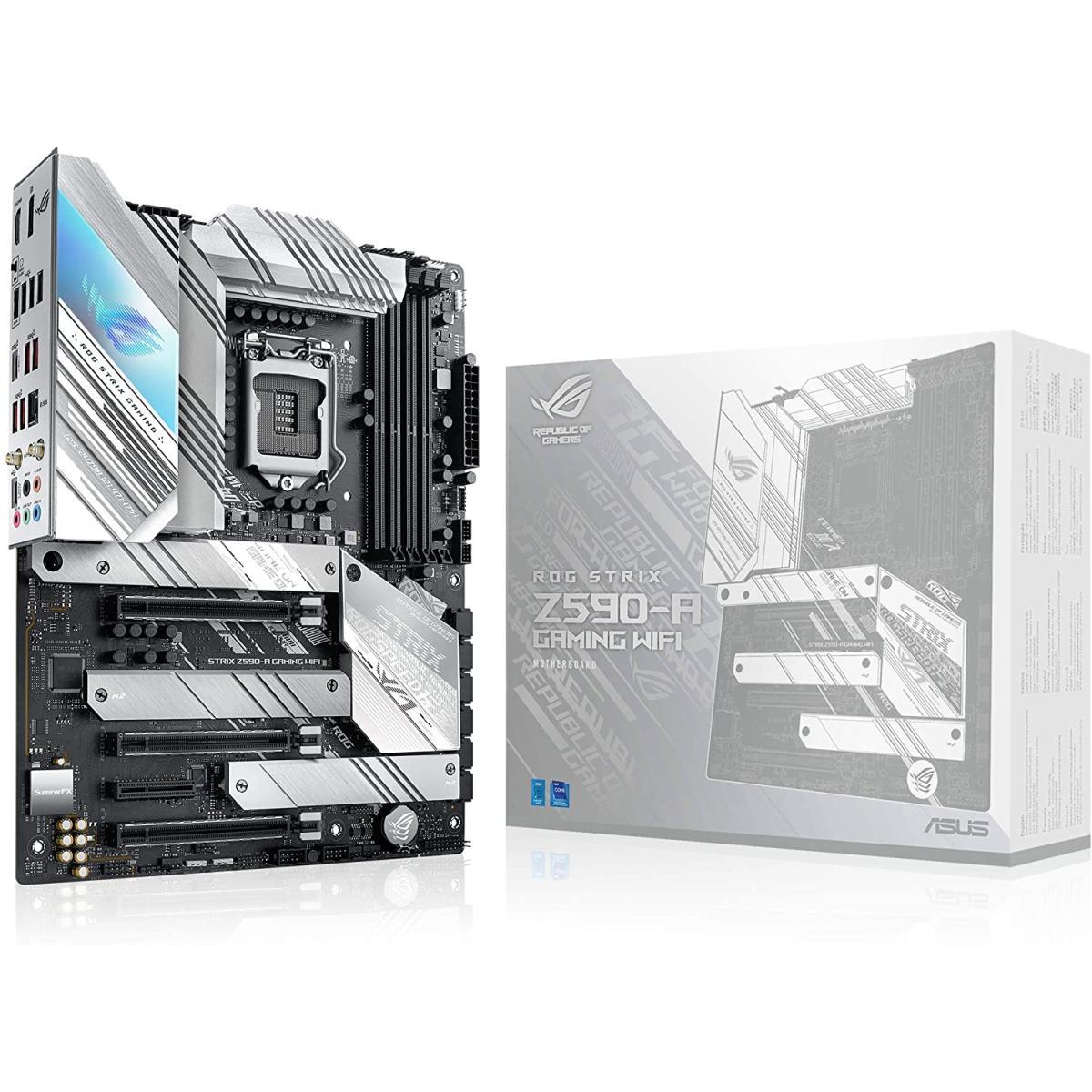

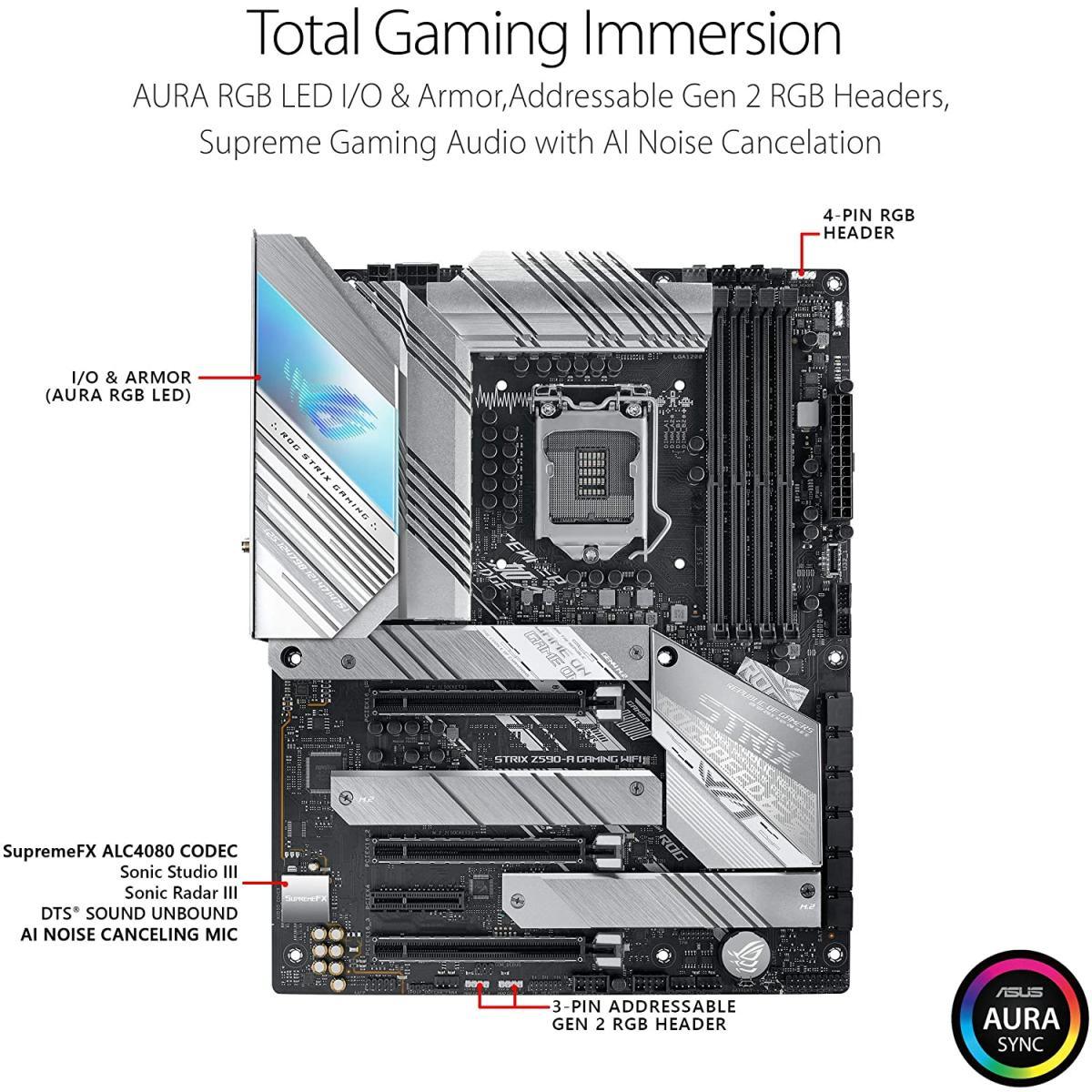

The ASUS ROG STRIX Z590-A Gaming Motherboard is a premium offering, supporting 11th and 10th generation Intel Core processors with the LGA1200 socket. It boasts a 5333(OC)5133(OC)/5000(OC)/4800(OC)/4600(OC)/4500(OC)/4400(OC)/4267(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory, Intel Extreme Memory Profile (XMP), and a Dual Channel Memory Architecture for unparalleled performance and potential overclocking. With its 2.5Gb LAN and PCIe 4.0, it is the perfect setup for a gaming enthusiast.
| Supported Processors |
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™
Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset |
Intel® Z590 Chipset |
| Socket |
LGA1200 |
| Memory Type |
DDR4 |
| Memory Slots |
DDR4 5333(OC)5133(OC)/5000(OC)/4800(OC)/4600(OC)/4500(OC)/4400(OC)/4267(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC
Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively
others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. |
| Maximum Memory |
128GB |
| Ports |
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
5 x USB 2.0 port(s) (4 x Type-A
1 x Audio USB Type-C®)
1 x HDMI™ port
1 x DisplayPort
1 x ASUS Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack™ button |
| Form Factor |
ATX |
| Expansion Slots |
3 x PCIe 4.0/3.0 x16 (x16
x8/x4/x4)
Intel® 11th &10th
Gen Processors
3 x PCIe 4.0/3.0 x16 slot(s)*
- Intel® 11th processors support PCIe 4.0 x16 or x8/x4/x4 mode(s)
- Intel® 10th processors support PCIe 3.0 x16 or x8/x4/x4 mode(s)
Intel® Z590 Chipset
1 x PCIe 3.0 x4 slot |
