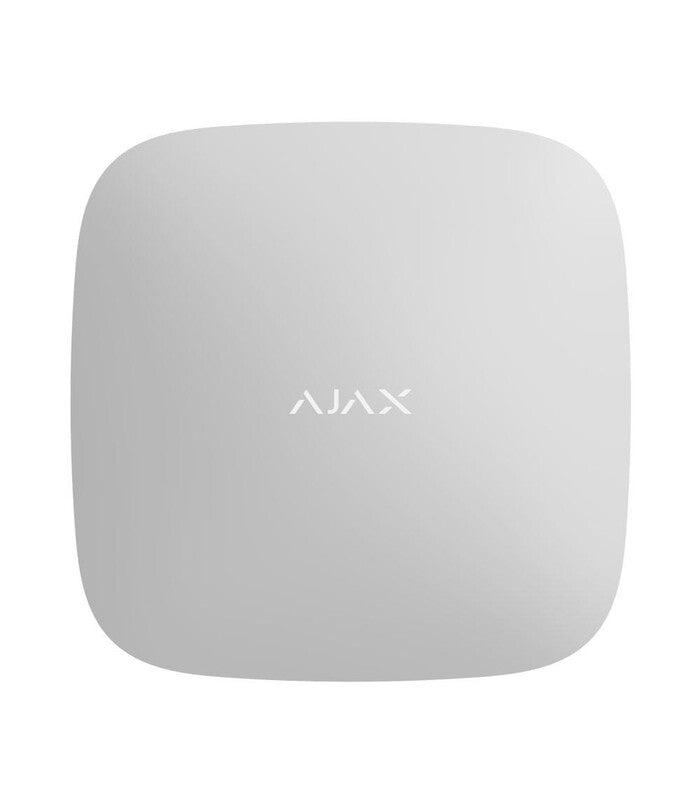

AJAX HUB 2 PLUS IoT Wireless Control panel White

• The AJAX HUB 2 PLUS 20279WH is an advanced smart home security system hub that offers top-of-the-line protection for your home or business.
• With its sleek and elegant white design, the AJAX HUB 2 PLUS 20279WH seamlessly blends into any modern interior while providing robust security features.
• Serving as the central control unit for the AJAX security system, this hub allows you to effortlessly manage and monitor all connected devices.
• The AJAX HUB 2 PLUS 20279WH supports a wide range of wireless detectors, sensors, and AJAX devices, ensuring comprehensive security coverage for your property.
• It employs the secure Jeweller protocol, enabling a reliable and stable connection between the hub and devices at distances of up to 2,000 meters.
• The hub offers multiple communication channels including Ethernet, Wi-Fi, and 2G/3G/4G, ensuring uninterrupted connectivity and real-time alerts.
• Equipped with a powerful processor and expanded memory capacity, the AJAX HUB 2 PLUS 20279WH delivers quick system response and smooth operation.
• Seamless integration with popular smart home platforms such as Google Home and Amazon Alexa allows you to control your security system with voice commands for added convenience.
• Advanced security features like tamper detection, encrypted communication, and a backup battery ensure the system's integrity and functionality even during power outages or attempts to compromise it.
• The AJAX HUB 2 PLUS 20279WH comes with a user-friendly mobile app that enables remote control and monitoring of your security system from anywhere, providing peace of mind on the go.
• Customization options allow you to create personalized security scenarios, set up notifications, and tailor the system to your specific needs.
• The hub is compatible with AJAX Cloud, providing secure cloud storage for event logs and granting access to the system's history and statistics whenever required.
• Installation and configuration of the AJAX HUB 2 PLUS 20279WH are straightforward, making it suitable for both professional installers and DIY enthusiasts.
• Backed by AJAX Systems, a renowned company known for its high-quality security solutions, the AJAX HUB 2 PLUS 20279WH ensures reliability and excellent customer support.

Technical specification:

Classification: Central control panel with radio communication and alarm photo verification support
Maximum number of devices: 200
Maximum number of users: 200
Maximum number of rooms: 50
ReX signal extender support: Yes (max. 5 in the system)
MotionCam motion detector support: Yes
Scenarios: 64
Groups (subsystems): 25
Mobile applications: iOS 9.1 and higher; Android 4.4 and higher
Communication channels: 2G (GSM900/DCS1800 (B3/B8)); 3G (WCDMA 850/900/2100 (B1/B5B8)); LTE (FDD B1/B3/B5/B7/B8/B20); Wi-Fi (802.11 b/g/n); Ethernet
Switching between SIM1 and SIM2: Within 4 minutes
Communication with PPC: Contact ID, SIA (DC-09)
Processor: ARM
Operating system: OS Malevich
Power supply:110 - 230 V AC (Hub 2 Plus) / 8 - 20 V DC (Hub 2 Plus 12 V); built-in backup battery: Li-Ion 2 Ah; up to 15 hours of backup (with offline operation and disabled Wi-Fi and Ethernet module); power consumption: 10 W
Jeweler radio technology: Range of communication with devices - up to 2,000 m in open space; two-way communication; operating frequency: 868.0 - 868.6 MHz; self-regulating transmission power - up to 25 mW; block encryption based on the AES algorithm; device polling interval by the Hub: 12 - 300 s; automatic retuning to an undisturbed channel
Supported type of SIM cards: 2x Micro-SIM 2G
Protection against sabotage: Device authentication; radio signal interference detection; tampering warning
Video surveillance: Up to 100 cameras or recording devices
Operating temperature range: From -10 °C to +40 °C
Dimensions: 163 × 163 × 36 mm
Weight: 351 g
Certification: Security level 2, environmental class II according to EN 50131, CE

Package contents:
Ajax Hub 2 Plus, SmartBracket holder, power cable, Ethernet cable, mounting material, user manual
