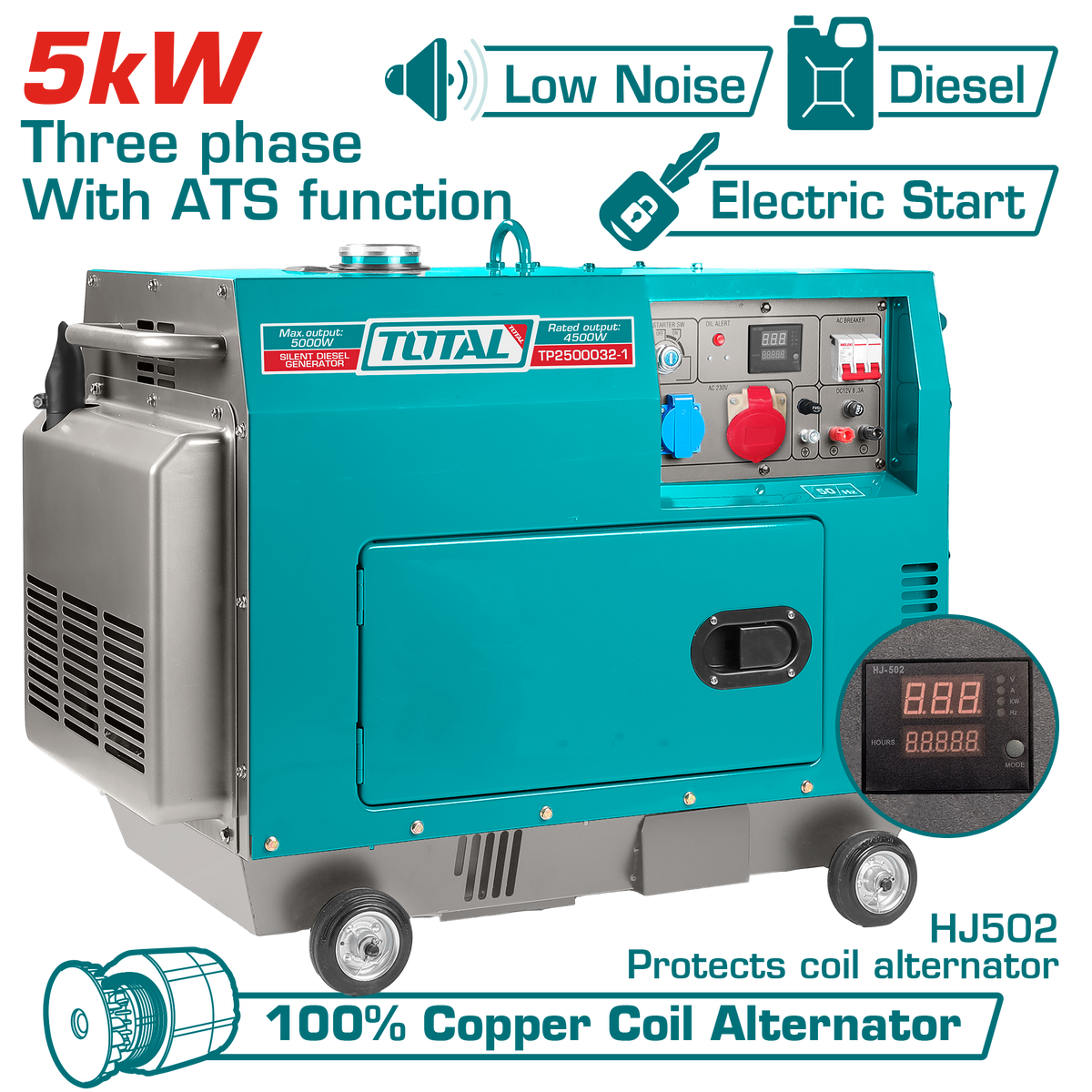

TOTAL Silent Diesel Generator 5.0kW Three Phase with ATS – Electric Start Generator (TP2500032-1)

TOTAL Silent Diesel Generator 5.0kW Three Phase with ATS – Electric Start Generator (TP2500032-1)

Key Features & Specifications

• The Silent Diesel Generator 5.0kW Three Phase is a reliable power solution for industrial, commercial, construction, and backup power applications. Equipped with a 9HP diesel engine, copper alternator, and ATS (Automatic Transfer Switch) function, it provides stable power output for both three-phase and single-phase equipment. Its silent enclosure reduces operating noise, making it suitable for continuous operation in demanding environments.
• Generator Specifications
• Rated voltage:
• 220-240V (Single Phase)
• 380-415V (Three Phase)
• Rated frequency: 50Hz
• Phase: Three Phase
• Power Output:
• Three Phase (380-415V)
• Maximum output: 5000W
• Continuous output (COP): 4500W
• Single Phase (220-240V)
• Maximum output: 1650W
• Continuous output (COP): 1500W
• Engine Specifications
• Engine type: Diesel
• Engine power: 9.0HP
• Displacement: 418cc
• Rated speed: 3000rpm
• Cooling system: Air-cooled
• Starting system: Electric start
• Additional Features
• ATS function (Automatic Transfer Switch)
• Copper coil alternator
• DC output: 12V / 8.3A
• Fuel tank capacity: 17L
• Maintenance-free battery: 30AH
• Silent enclosure design
• Dry weight: 172kg
• Packed in a carton box
