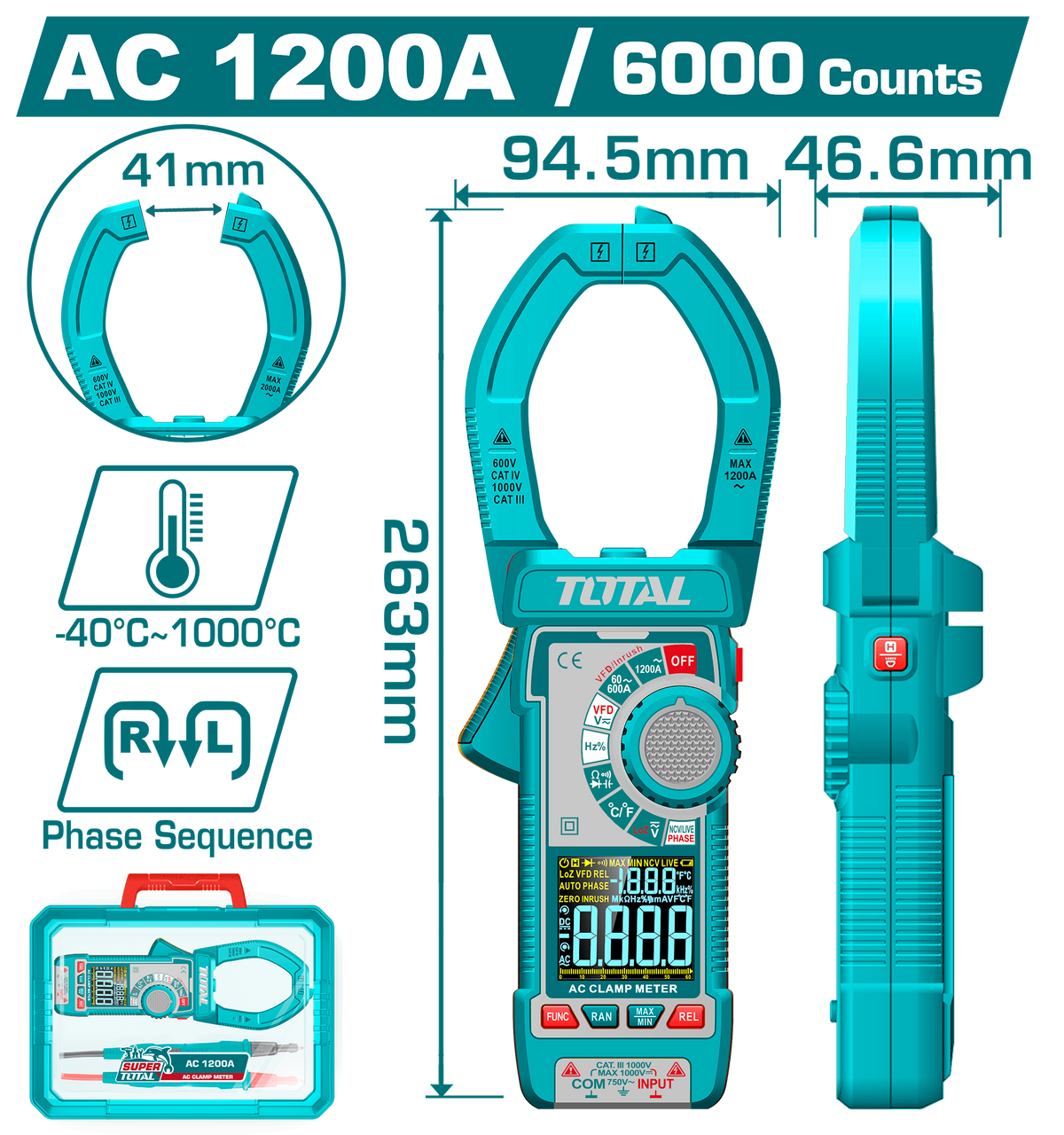

TOTAL Digital AC Clamp Meter 1200A – True RMS 6000 Counts with Color Display (TMT7610001)

TOTAL Digital AC Clamp Meter 1200A – True RMS 6000 Counts with Color Display (TMT7610001)

Key Features & Specifications

• The Digital AC Clamp Meter is a versatile electrical measuring tool designed for electricians, technicians, maintenance teams, and professional electrical troubleshooting. It features a clear VA color display, True RMS 6000-count measurement, and AC current measurement up to 1200A.
• In addition to current and voltage measurement, the meter supports resistance, capacitance, frequency, and temperature measurements, along with advanced functions including inrush current, LowZ, LPF/VFD, phase detection, diode testing, and data hold.
• Display: VA color display
• True RMS
• Display count: 6000 counts
• AC current: 60A / 600A / 1200A
• DC voltage: 600mV / 6V / 60V / 600V / 1000V
• AC voltage: 600mV / 6V / 60V / 600V / 750V
• Resistance: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ
• Capacitance: 60nF / 600nF / 6µF / 60µF / 600µF / 6mF / 60mF
• Frequency: 10Hz / 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz
• Temperature: -40°C to 1000°C
• Temperature: -40°F to 1832°F
• Data Hold function
• LowZ function
• LPF/VFD function
• Inrush current measurement
• Phase function
• Diode test
• Low battery indicator
• Automatic power-off
• Includes 3 × LR03 AAA batteries
• Packed in a plastic box
